TOMAR's 20" TRX Series Single Color Infrared LED Light Bar (White/IR) is the perfect solution for illuminating your surroundings in low-light or complete darkness.
With a powerful output of up to 940 nanometers of infrared light, this IR light bar can illuminate large areas up to 300 meters away, providing clear and detailed images to night vision devices.
The illumination override ability gives you to the option to illuminate the scene with traditional white LEDs that have been incorporated into the design of our 20" TRX Series Infrared LED light bar.
KEY FEATURES
- Utilizes 940nm Infrared (IR) LED lights
- Internally-relayed switching and low-current control wires means no need to add vehicle relays to switches.
- Our TR Series Lamps feature a special hard-coating process for increased ultraviolet (UV) and environmental protection, ensuring they are good-to-go regardless of where you use them.
- Easy installation: All TRX Series light bars come with a universal mounting kit, making them easy to install on any vehicle.
- Designed to decrease wind noise
- SAE-J575 Vibration Tested
- Features 4 Field-interchangeable lamp modules
- Programmable flash patterns meet 50-state compliance
- IP69K Rating for water and dust-proof components
- Patented linear vibration welded light modules eliminate the need for failure-prone rubber sealing agent
- Operating temperature: -40°C to 60°C
- Heavy-duty 6063-T5 Aluminum Heatsink for maximum intensity over long periods

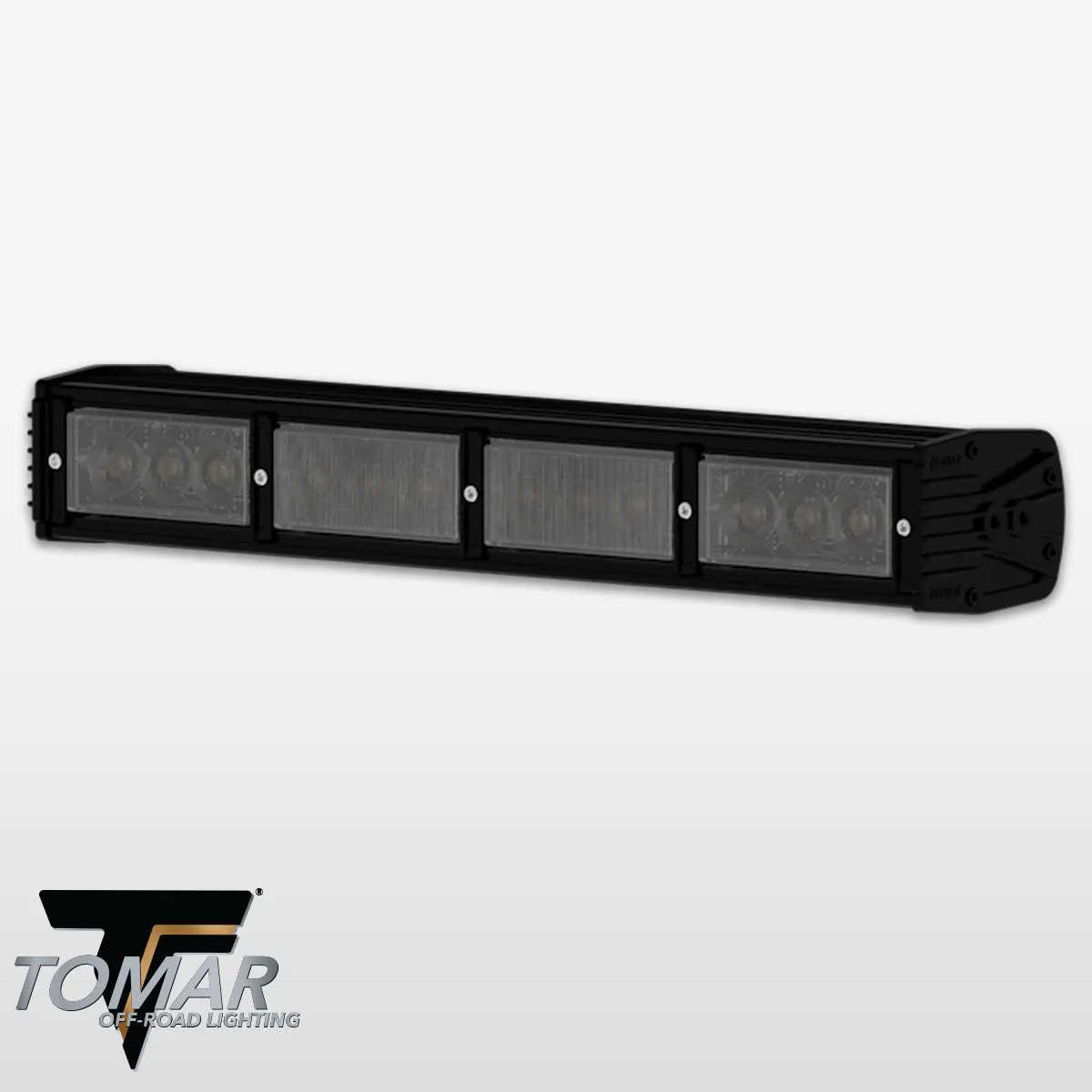

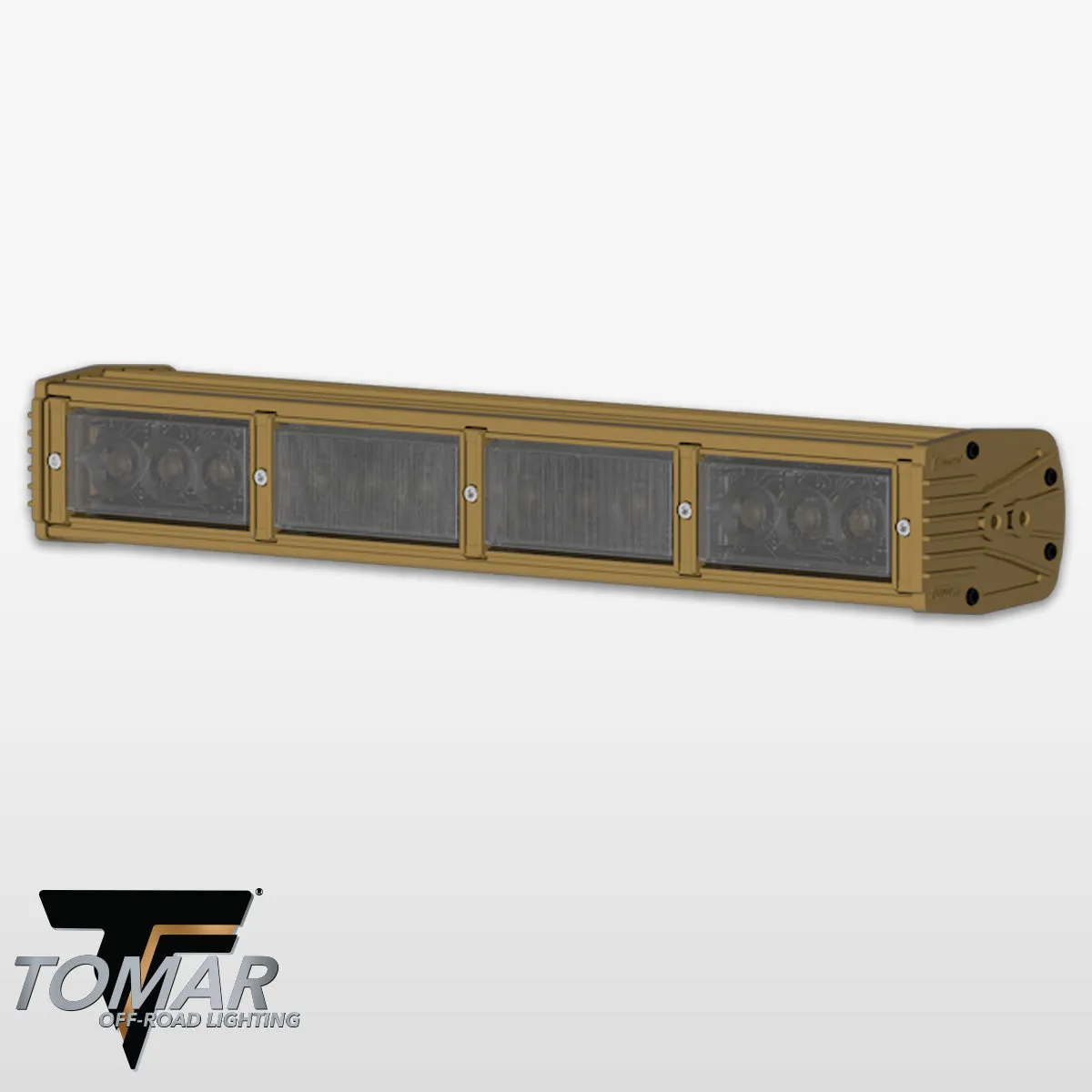

- Rugged black anodize or matte tan powder-coat finishes
- Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.

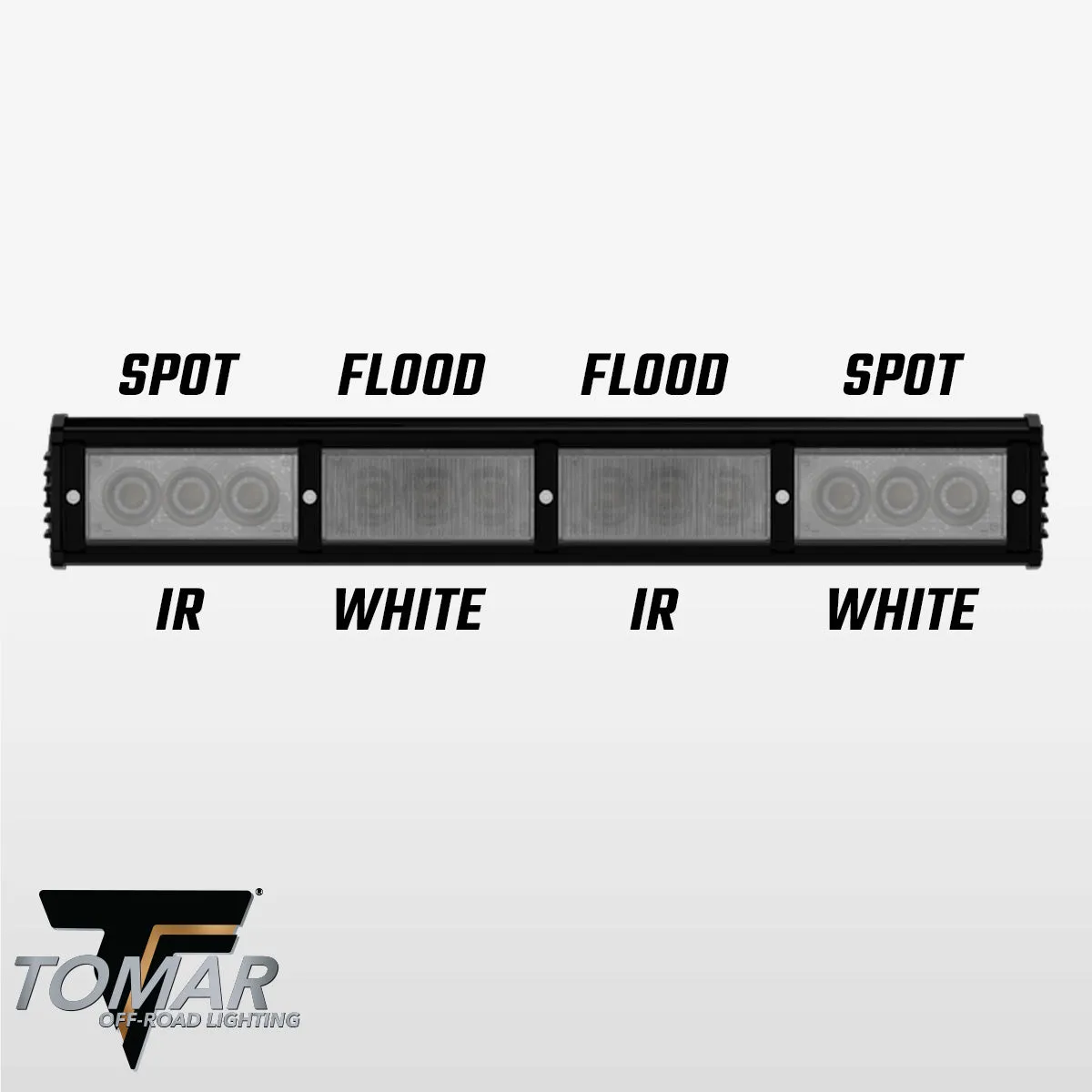

- BEAM ANGLES
- WHITE FLOOD 85°
- WHITE SPOT 6.5°
- IR FLOOD 90°
- IR SPOT 8.5°
SPECS
- Number of Modules: 4
- Number of LEDs: 12 (6 WHITE / 6 940nm IR)
- Configuration: IR with white override

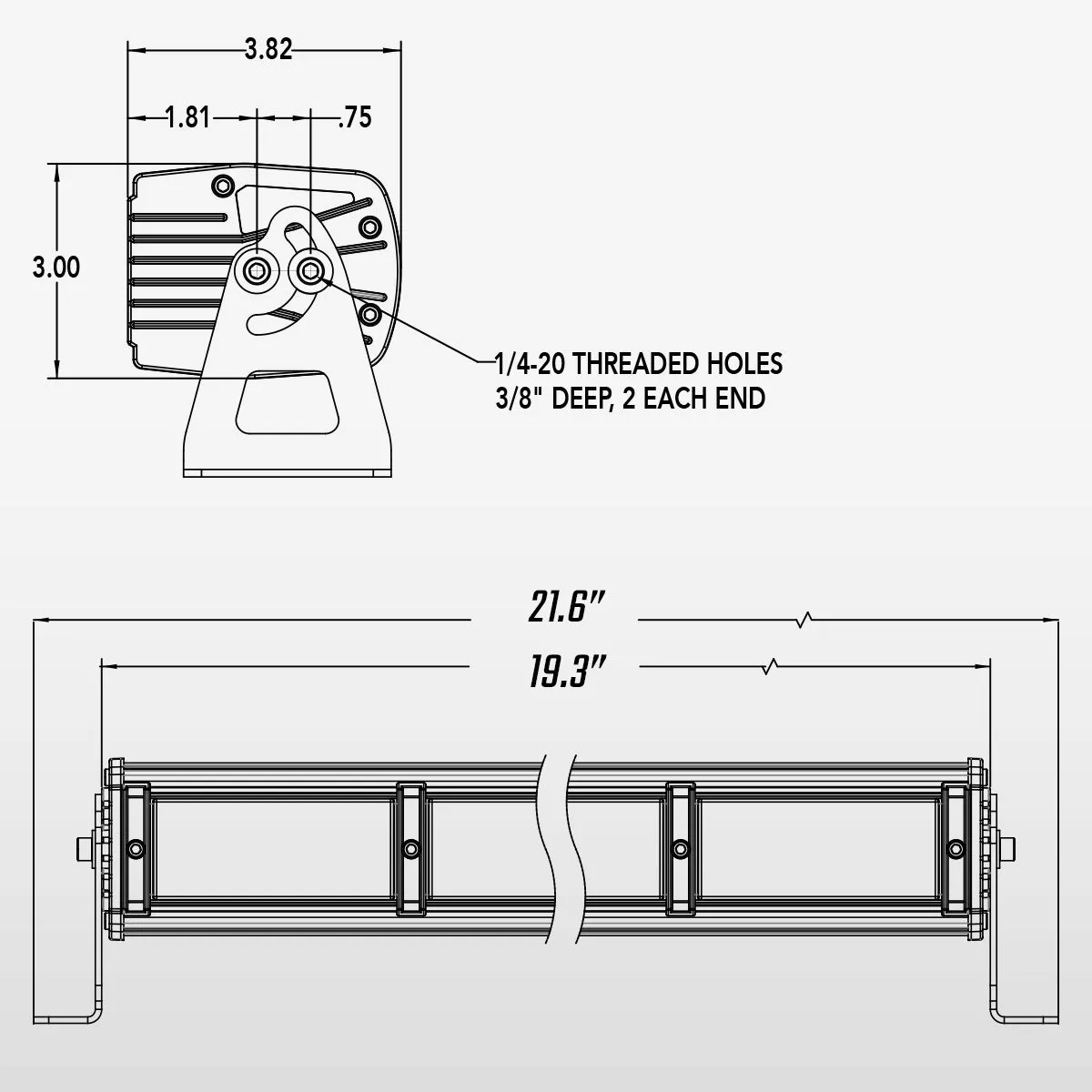

- Size: 20"
- Max Amp Draw: 8.4
- IR Amp Draw: .85 amps @ 12.8VDC per IR module .46 amps @ 24VDC per IR module
- Peak Candela – White: 79360
- Raw Lumens – White: 6520
- White Distance at 1 LUX 282
- White Distance at .25 LUX: 563
TOMAR TRX Single-Color Infrared Line Functionality
- Group 1: All white LED lights steady burn
- Group 2: All IR (940nm) LED lights steady burn
- Group 3: All white lights flash S.O.S.
- Group 4: Single module driving lamp (White only)
- What is steady burn? Steady burn means that the light is always on, no flashing
Performance Through Engineering
Starting with the industry-leading Cree® XPL LEDs for maximum performance and reliability for visible light; and LumiLEDs® Luxeon Series 940nm infrared LEDs, the TRX Series is a proven performer in the harshest environments. To maximize the effectiveness of every LED, TOMAR’s employs a hybrid TIR collimator optic design, rather than a reflector behind, which does not effectively capture the illuminating power of the LED.
