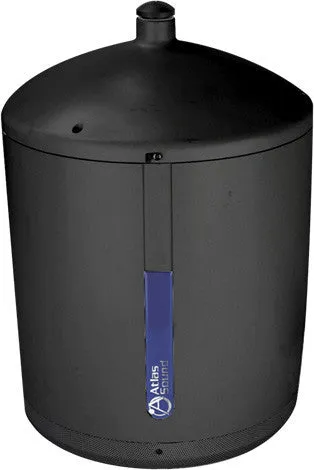

Atlas PM8CX-B 8 Inch 2-Way High Performance Pendant Mount Speaker

Model PM8CX-B includes the Atlas Sound 8CXT60 compression driver coaxial loudspeaker which provides excellent efficiency exceeding 92dB 1W/1M. The 8CXT60 also offers a desirable tighter 90 degree conical coverage pattern in the 2kHz octave band for great coverage performance in ultra high mounting locations up to 30'.

Features

• 70.7V taps @ 1.9, 3.8, 7.5, 15, 30 & 60 Watts plus 8-ohm direct input via concealed terminal block
• 8" 8CXT60 driver provides 90 degree (45 degree off-axis) coverage in the 2kHz octave band
• 3 Meter Cable & Mounting Hardware Included
• Compatible with standard 3/4" ceiling fan hardware
• The best solution for high ceiling applications

Specifications

• Height 16 5/8" (42.2148 cm)
• Diameter 12 1/4" (31.115 cm)
• Shipping Weight 21.00 lbs (9.53 kgs)
• Power Taps 7.5, 15, 30, 60W & 8 ohms
• Speaker Type Coaxial
• Dispersion 90°
• Power Rating 150 Watts
• Sensitivity 92dB Average
