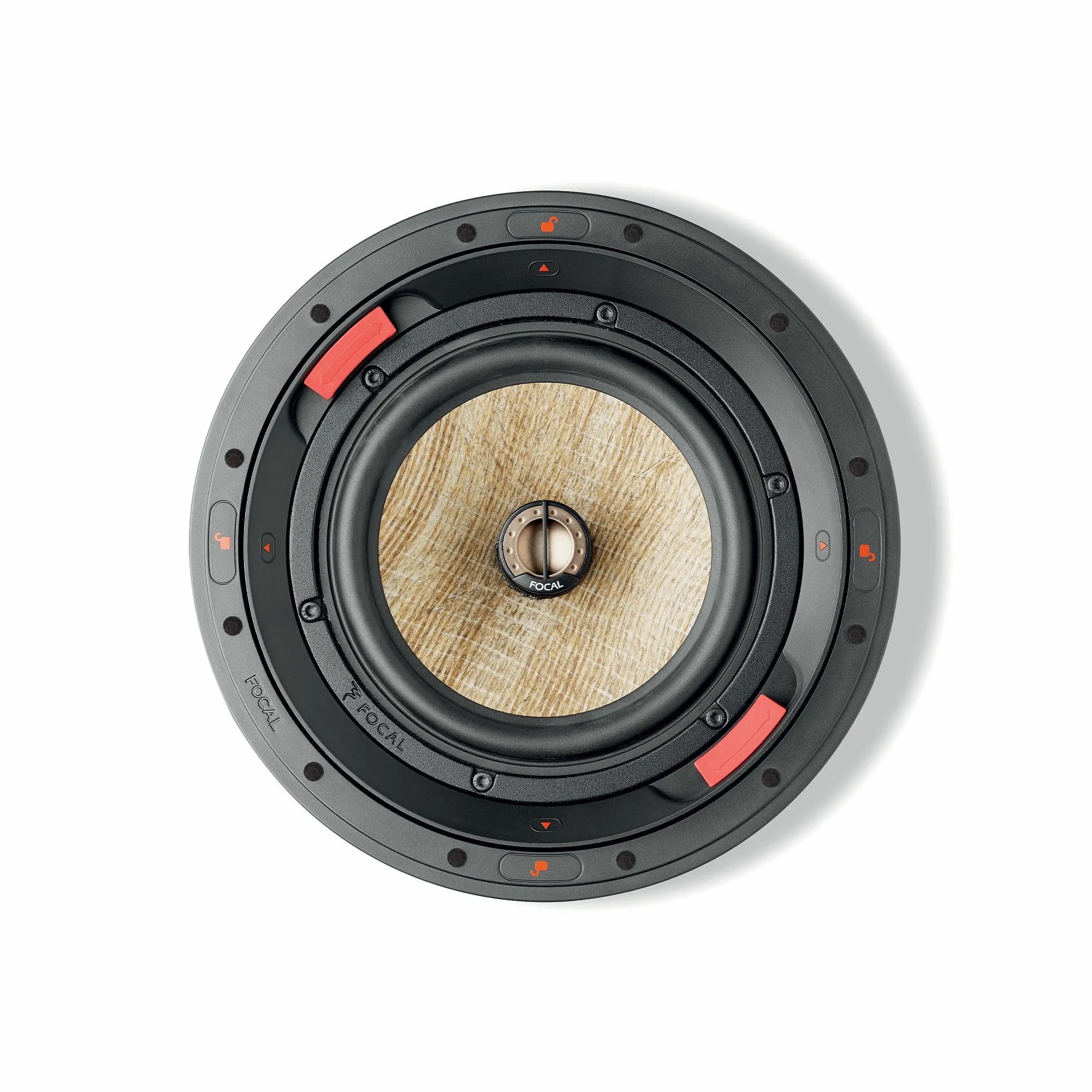

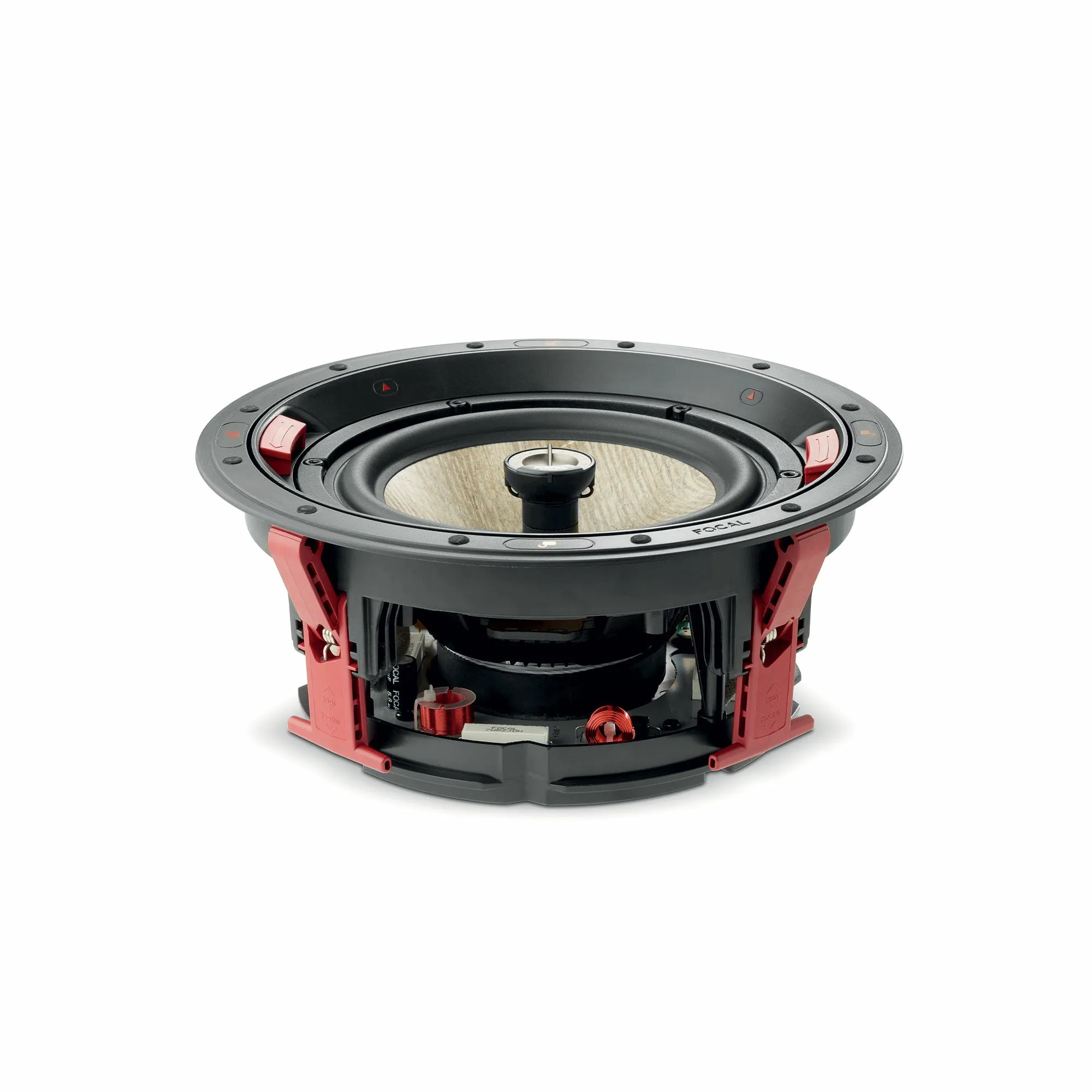

In-wall or in-ceiling, this integrated loudspeaker is ideal for hi-fi and home theater applications. Its high-performance output generates a powerful 90 dB of sound, and its perfect flush-mounted design means it's discreet. Its exclusive Focal technologies, such as the Flax membrane on the 21 cm driver and the aluminum/magnesium tweeter with adjustable inverted dome, deliver extremely well-defined hi-fi sound, perfectly adapted to the listening point and the environment.
Features
- 2-way speaker for custom install

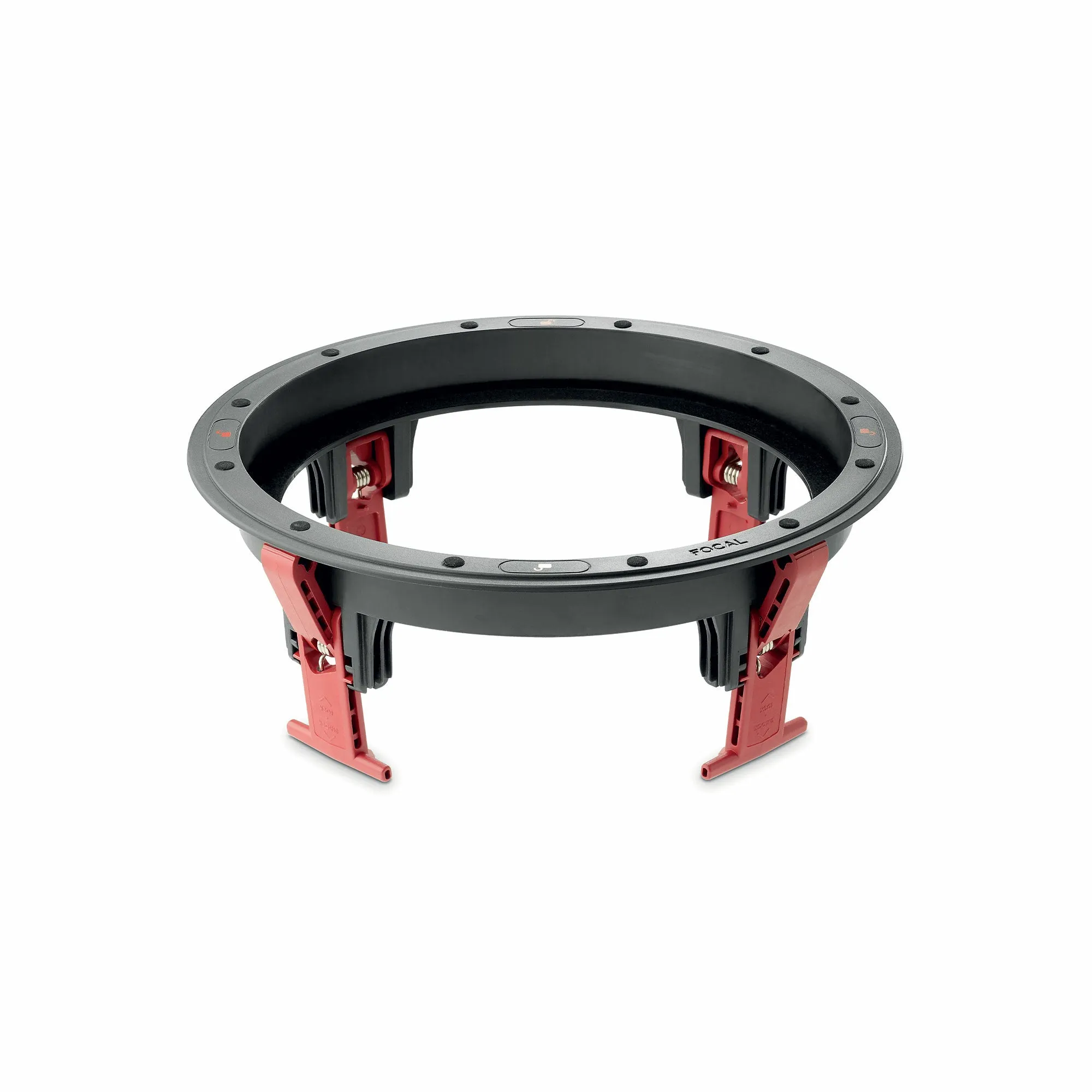

- No tools required to install the product
- Loudspeaker developed and manufactured in France by Focal

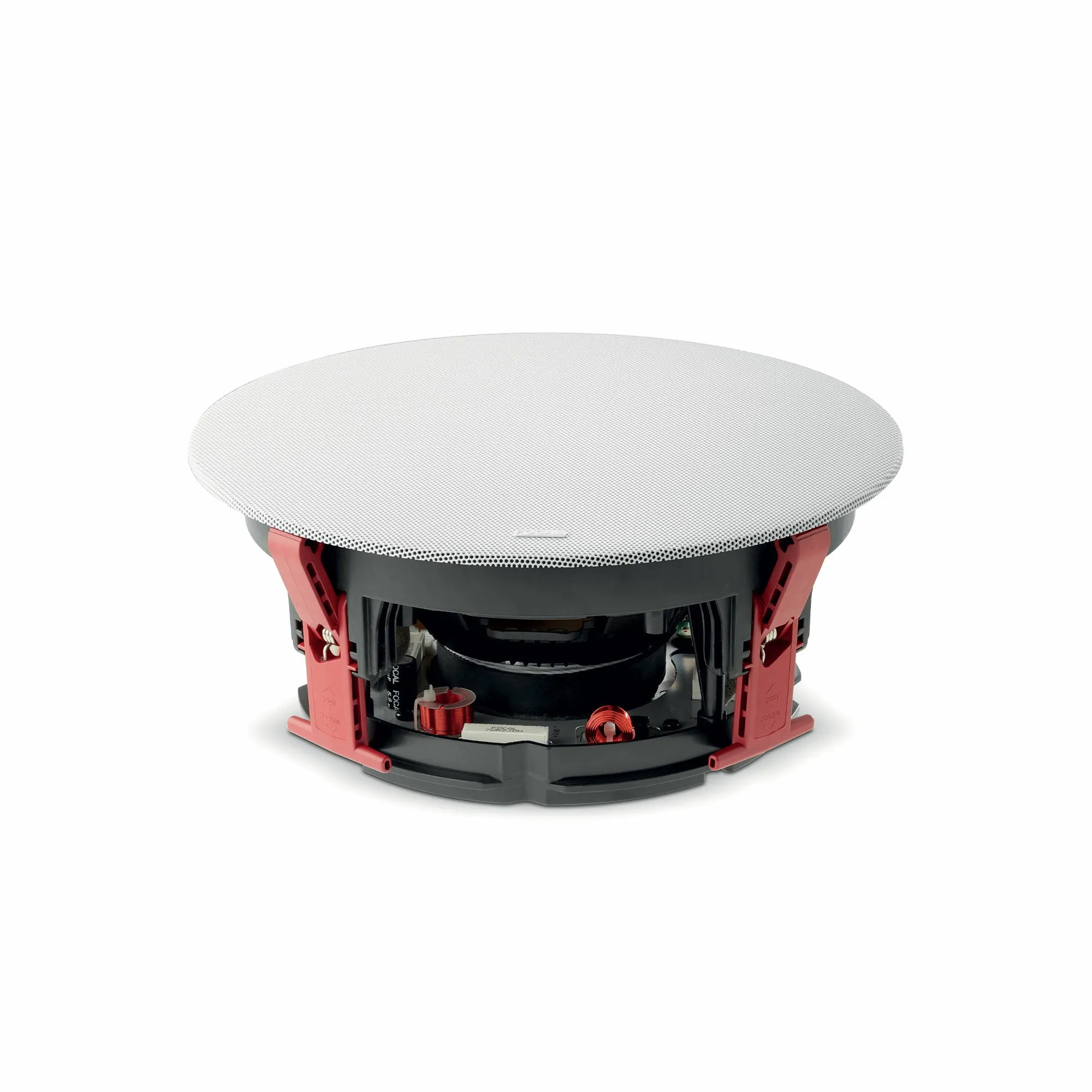

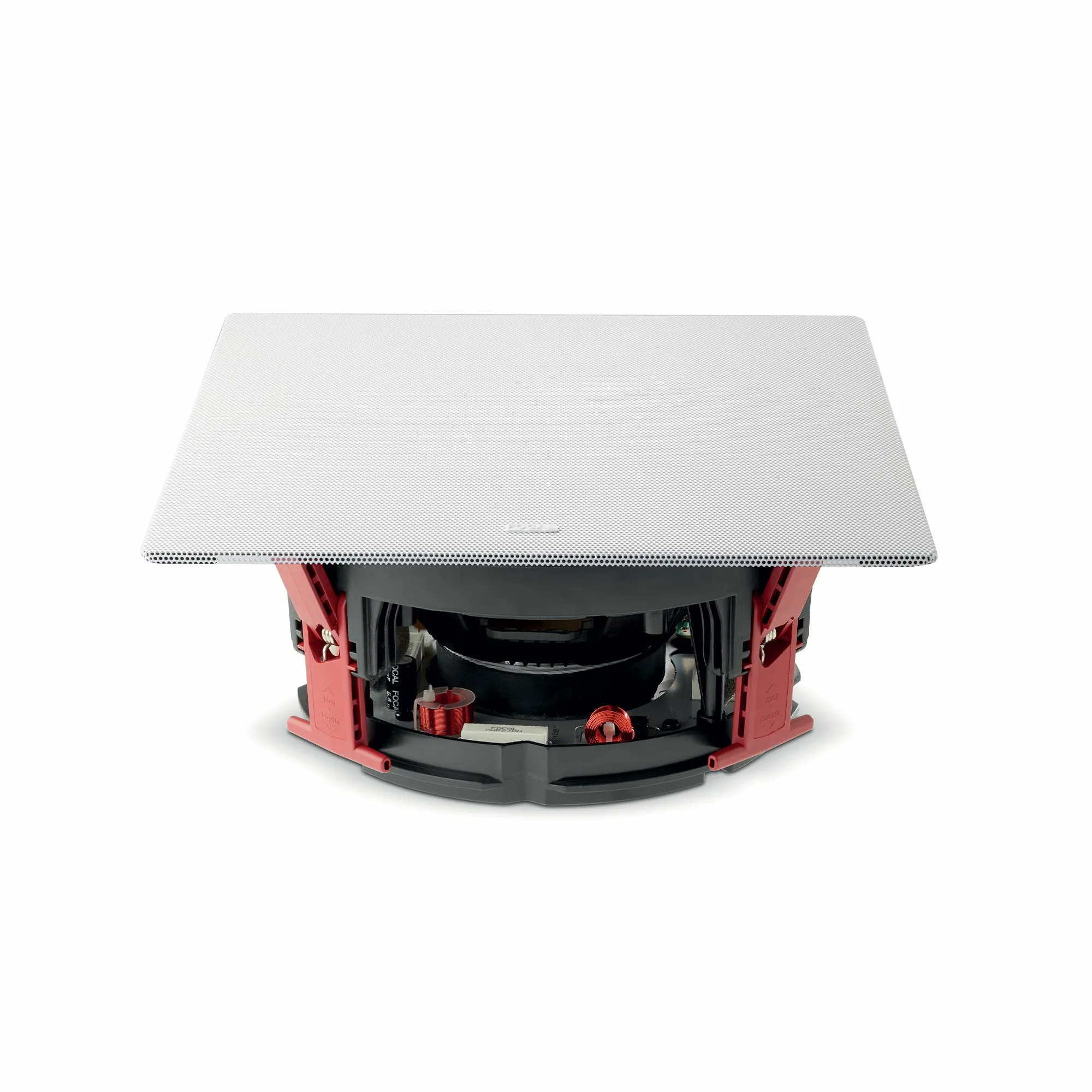

- Delivered with ready-to-paint square and circular front grilles and painting protective mask
- Off-axis response control (Tweeter rotation and gain adjustment)
Specifications
- Nom. Impedance: 8 Ω
- Minimum impedance:4.5 Ω
- Recommended amplifier power: 25 - 150 W
- Product type: 2-way
- Power in 70 V: No
- Power in 100 V: No
- Response at - 6dB (Low frequency point): 35 Hz
- Medium: 8" (21cm) Flax Mid-bass
- Membrane: Flax
- Frequency response ( /- 3dB): 48 Hz - 28 kHz
- Tweeter: 1" (25mm) Al/Mg inverted dome Tweeter
- Sensitivity: 90 dB
- Product depth: 11.7600in
- Cut-Out diameter: 10.3900in
- Depth behind surface (Mounting depth): 4.8000in
- Allowable ceiling thickness (min): 0.1875in
- Allowable ceiling thickness (max): 1.1900in
- Easy Quick Install: Yes
- Net weight (with grille): 7.0500livre
