30" FLEX™ LED Lower Bumper Mount System

The 30" KC FLEX LED lower bumper mount system mounts our 150W FLEX LED Light Bar to your OE 2005-2015 Toyota Tacoma Bumpers for powerful light output in a combo, spot and spread beam pattern.

FEATURES

• 150W 30" KC FLEX™ Array LED Light Bar
• Powder Coated Stainless Steel Brackets for Tacoma Front Bumpers
• Uses 15 x 10W FLEX LED Cores
• Die-Cast Aluminum Housing
• KC Precision Reflector Optics
• Patent Pending Pass Through Power Bus
• Combo Spot and Spread Beam

LIGHT PERFORMANCE

• RAW Lumens: 14,625 lm
• LUX @ 10 meters: 2,700 lx
• Candela: 270,000 cd
• Beam Distance (Meters): 1,039m

SPECIFICATIONS

• Wattage: 150W
• LED Source: CREE XM-L2
• Color: 5700K
• Amp Draw: 15.0A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: 31.375" x 2.0" x 3.25"

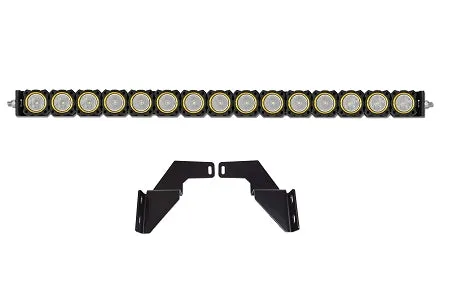

Parts Included

• (1) 30" KC FLEX™ Array LED Light Bar System and Wiring Harness
• (2) Black Powder Coated Steel Brackets for 2012-2015 Tacoma

OPTICAL PERFORMANCE AND LED EFFICIENCY

Combining KC precision injected reflector optics and performance LEDs the 30" KC FLEX LED Light Bar delivers 2,700 lx @10m of race performance light output and optical clarity.

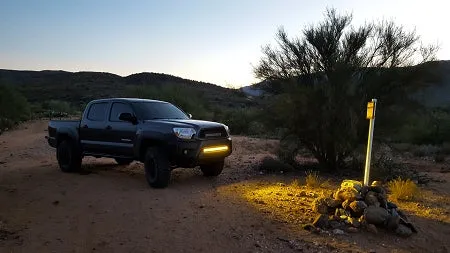

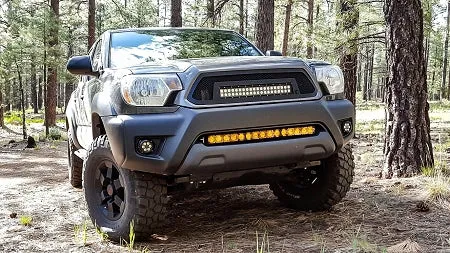

TOYOTA TACOMA OE MOUNTING

KC's brackets were designed specifically to mount 30" KC FLEX™ LED Light Bars to your Tacoma's bumper for an OE style mount look and intense light output. Combo beam pattern provides illumination of objects peripherally and far distances.

COMBO BEAM PATTERN AND ADVANTAGES

Combo Beam: A combo beam pattern, with perfectly angled Spot and Spread reflectors, for maximum forward distance and peripheral illumination along road edges.

BAJA 1000 RACE TESTED STRENGTH AND DURABILITY

Using IP68 rated Die-Cast Aluminum Flex Housings and Light Cores our 30" KC FLEX LED Arrays are tested and approved by race teams for extreme durability in harsh weather and terrain.
