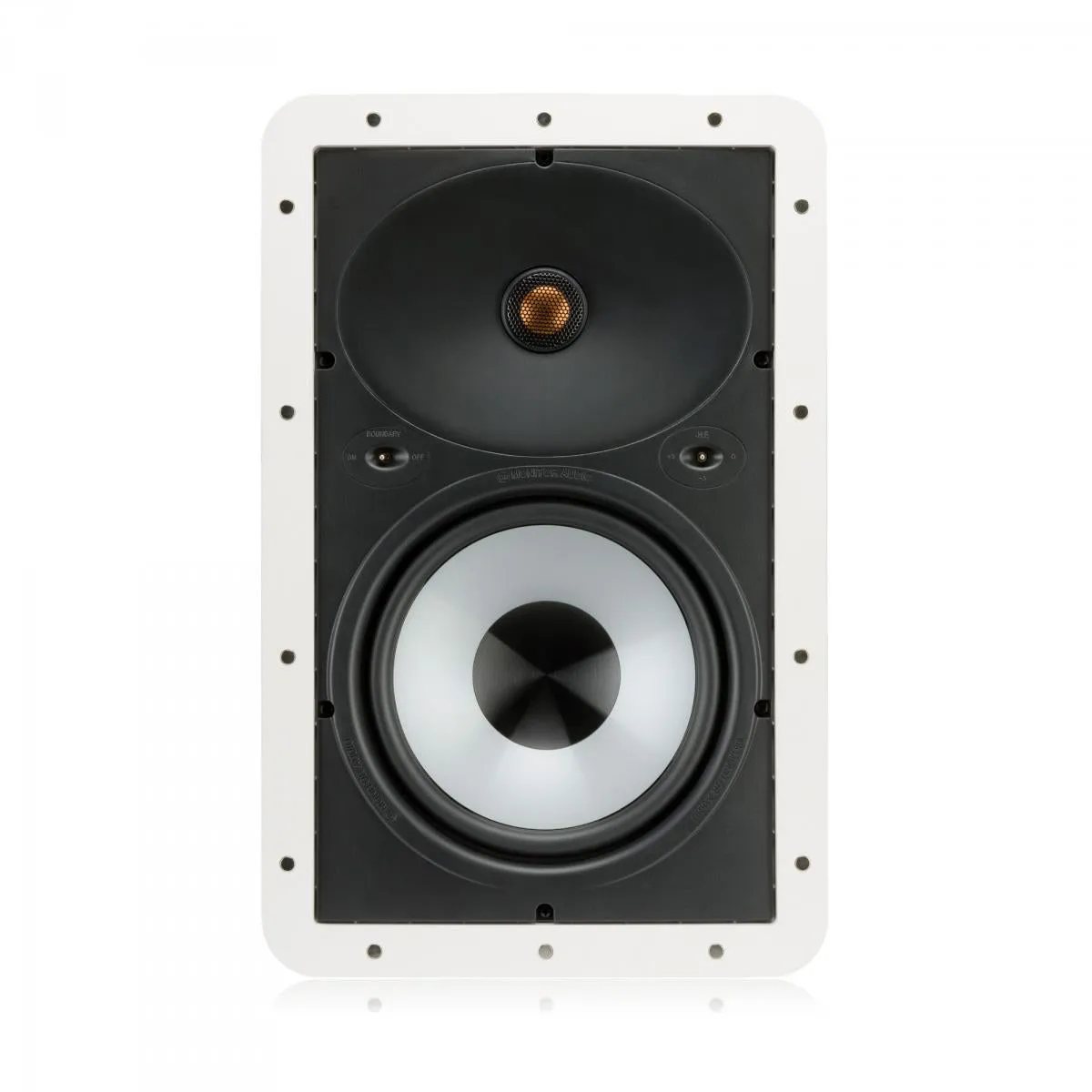

An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM gold dome tweeter offer an extended high-frequency response to 30kHz, as well as higher output and power handling capacity than the 100 Series 2-way models. Optimum imaging and set-up are established via a pivoting tweeter, high frequency ( 3dB / 0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.

2-way design with pivoting C-CAM tweeters (15 degrees of play).

High overall efficiency.

High frequency level adjustment ( /-3dB).

Boundary compensation control.

Audio match with CP range 200 models and Silver Series hi-fi speakers.

Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

Magnetic and easily removable steel grille.

Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.

Splash and humidity proof for installation in shower room or pool areas.

Features dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.

Specs

Frequency Response
45 Hz - 30 KHz

Sensitivity (1W@1M)
90 dB

Impedance (Nominal)
6 Ohms

Maximum SPL(Single unit in free space)
111.6 dBA

Power Handling (RMS)
120 W

Recommended Amp Requirements
30 - 120 W

Drivers
1 x 8 C-CAM cone bass driver 1 x 1 C-CAM Pivoting gold dome tweeter

Overall Dimensions: (including grille) (H x W)
441 mm x 288 mm (17 3/8 inch x 11 5/16 inch)

Overall Depth:(including grille)
97.5 mm (3 13/16 inch)

Cut-Out Dimensions: (H x W)
387 mm x 234 mm (15 1/4 inch x 9 3/16 inch)

Mounting Depth
93 mm (3 11/16 inch)

Controls
( 3db / 0dB / -3dB) High frequency level switch Boundary compensation

Fixing Type
6 position Tri-Grip dog fixings

Cable Connection
Gold plated push type terminals

Construction Material
Mineral filled ABS plastic

Weight
3.1 Kg (6.8 lb)
