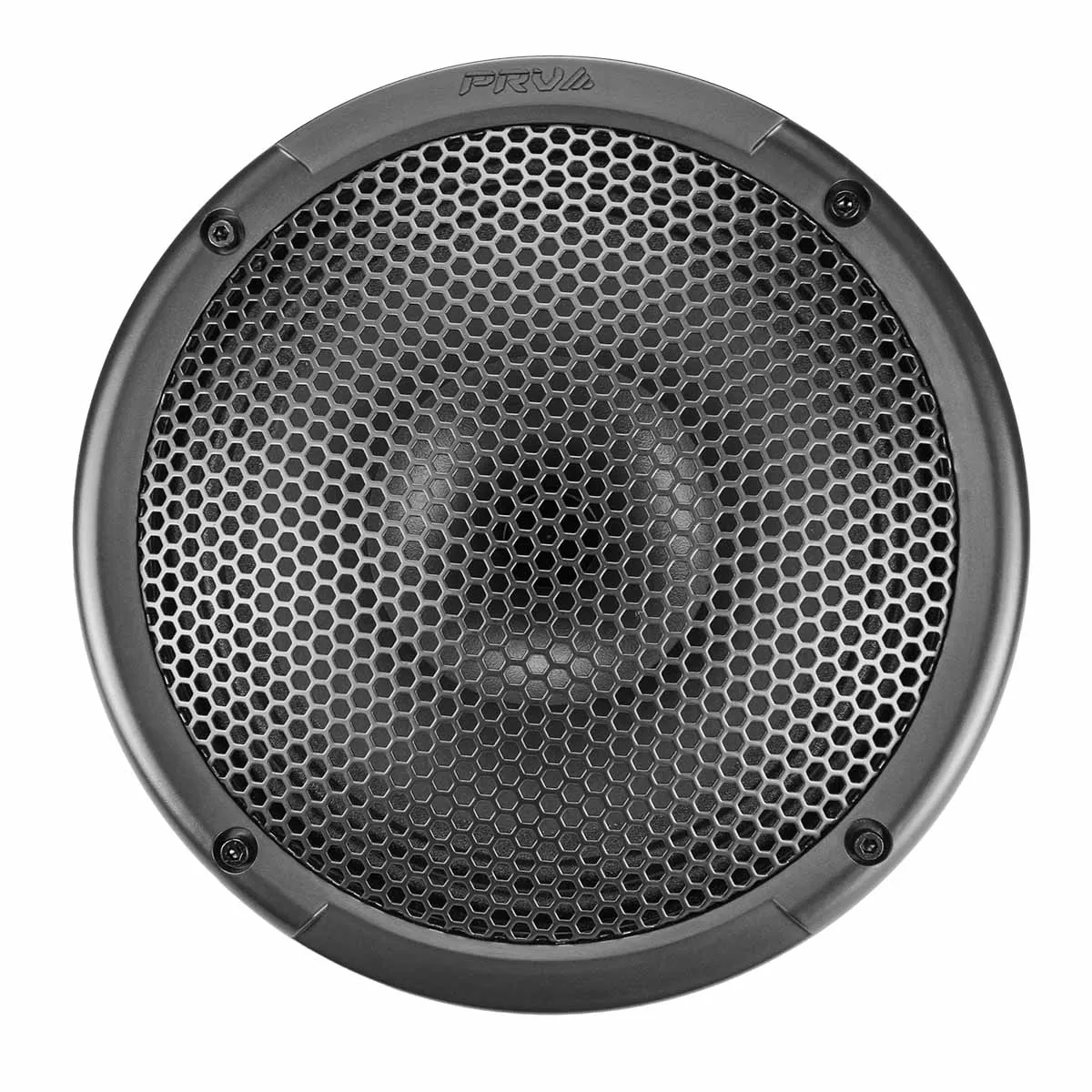

2-WAY FULL RANGE 8" PRO AUDIO COAXIAL

Highlights

Slim Design – Perfect for tight space applications that require PRO Audio sound quality in small areas where conventional drivers wouldn’t fit.

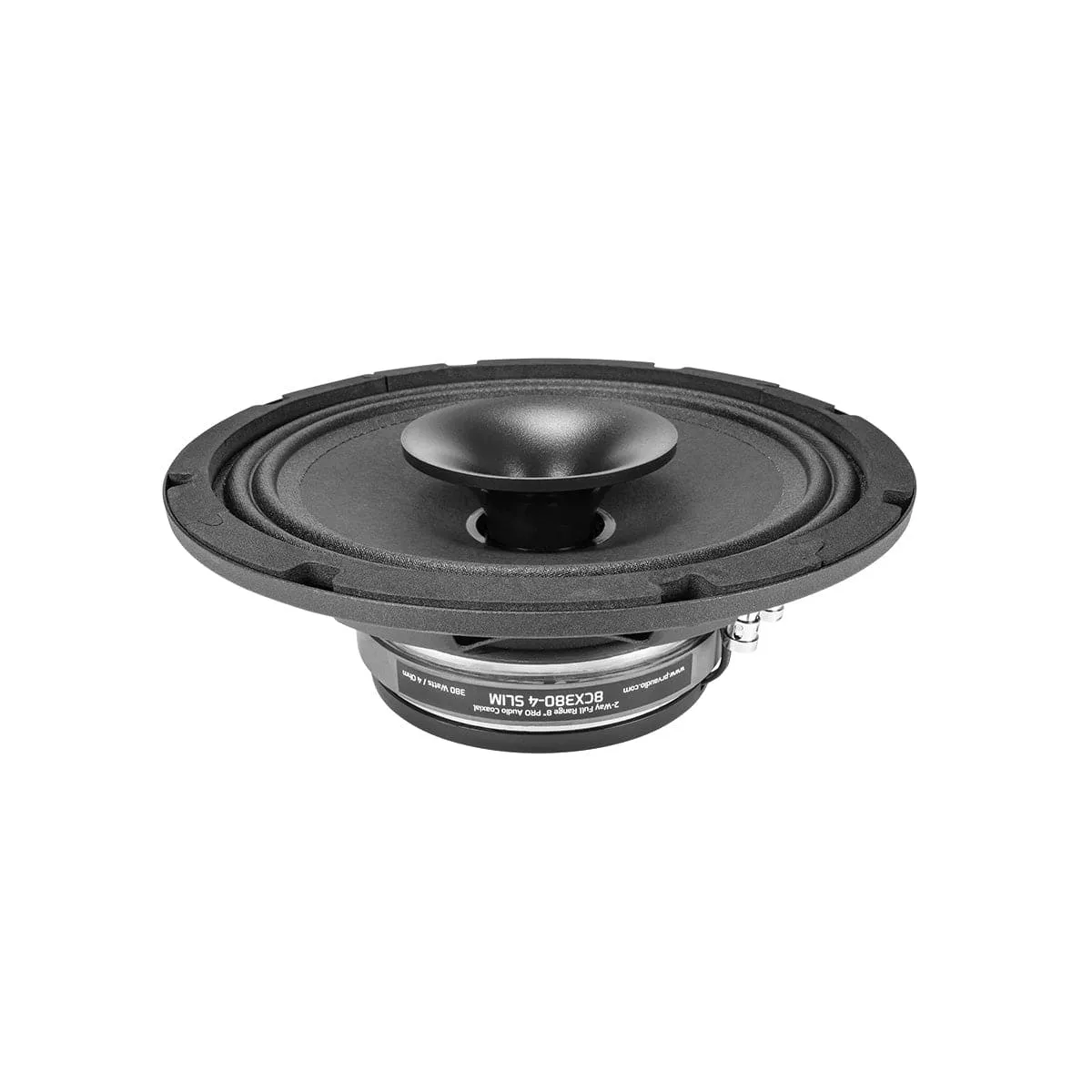

Built-in driver tweeter with in-line capacitor attenuates perfectly with the speaker, giving you a rich musical response.

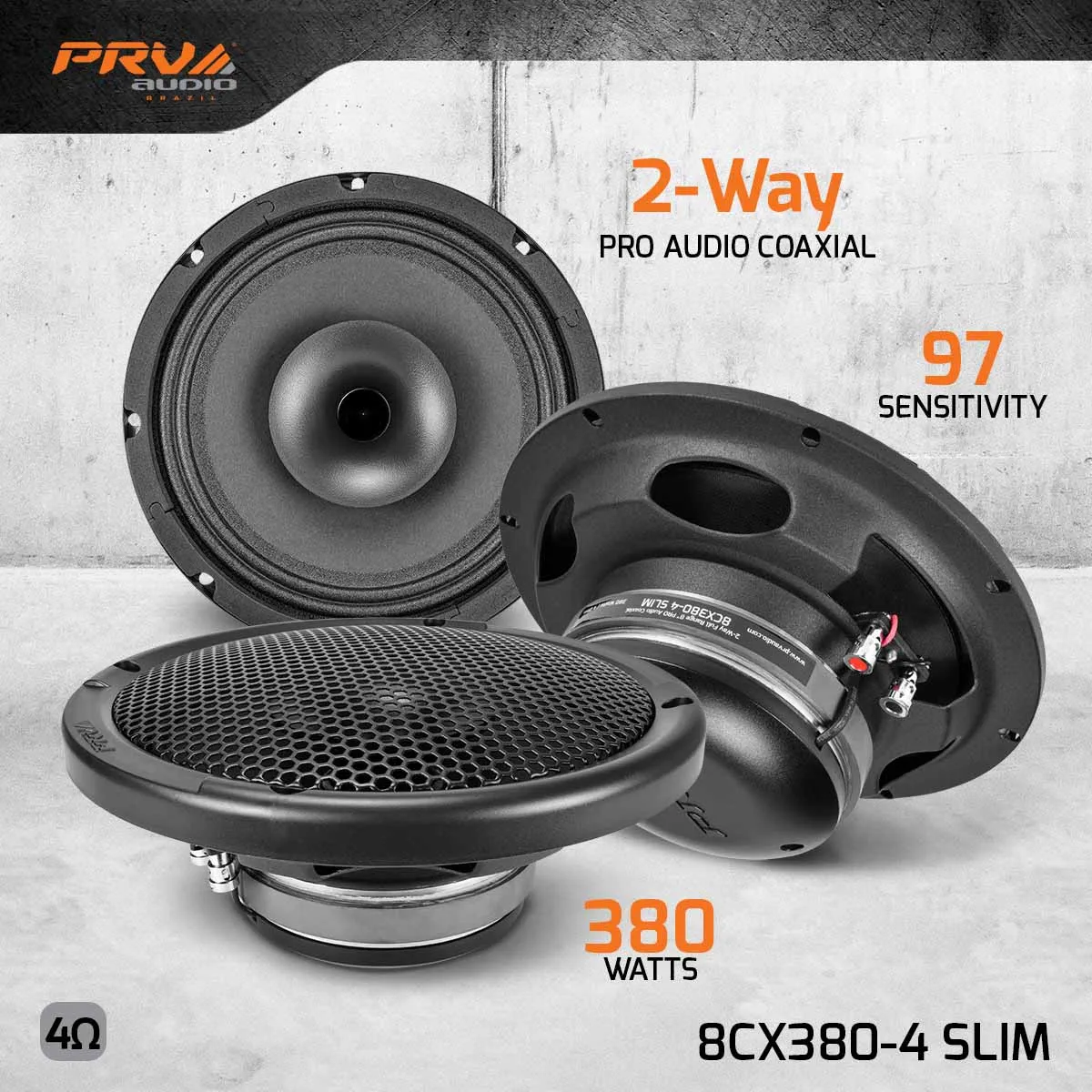

380 Watts RMS Music Power Handling, with a 97 dB Sensitivity, capable of generating a lot of sound with a small cone!

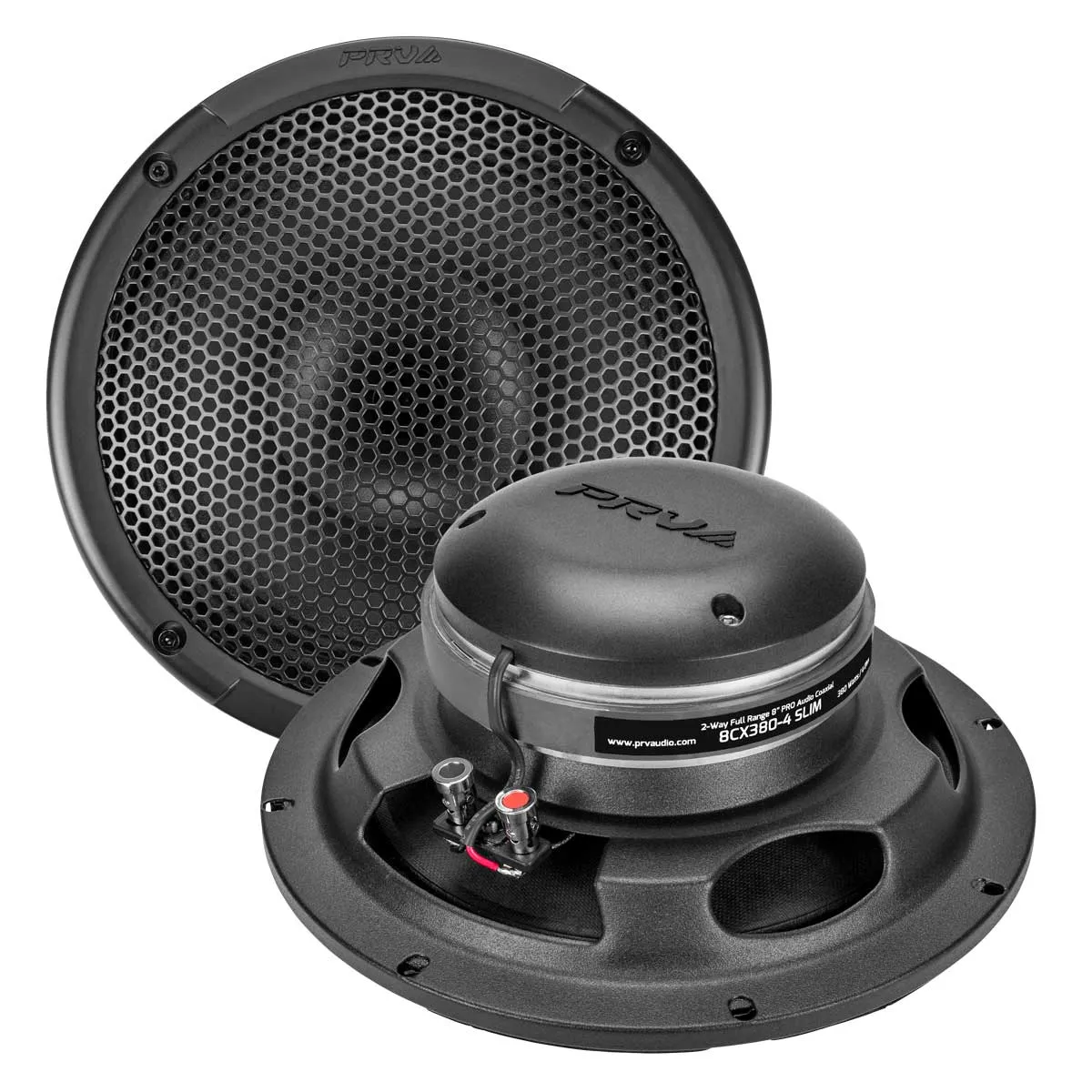

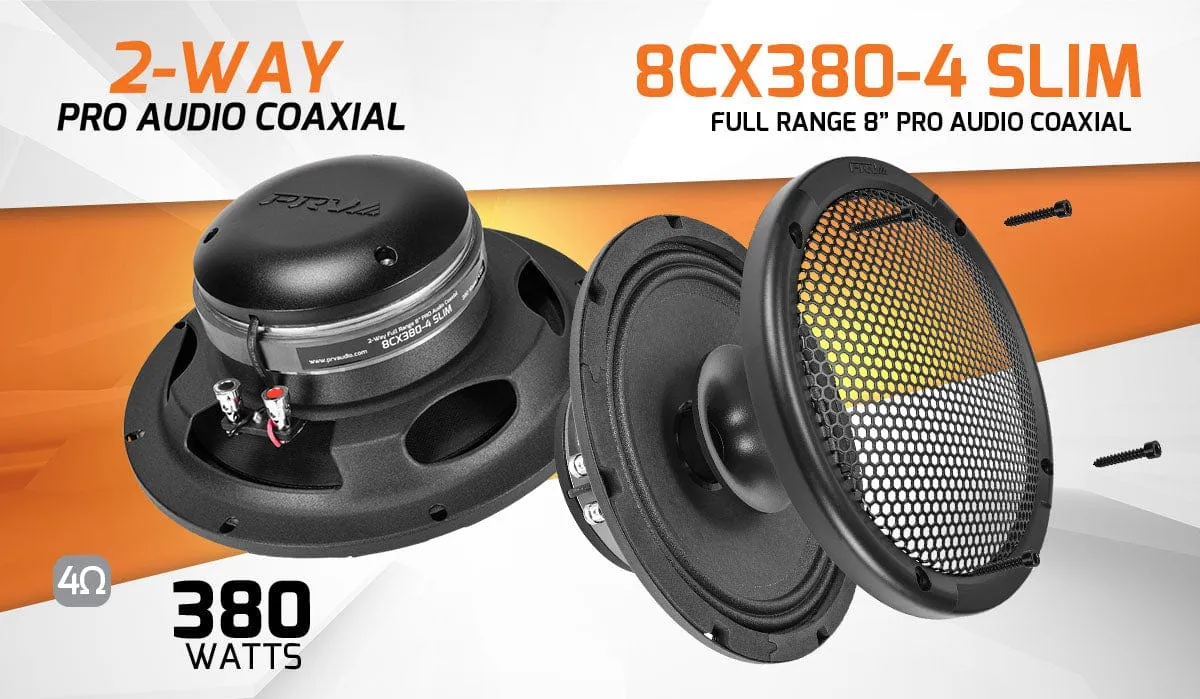

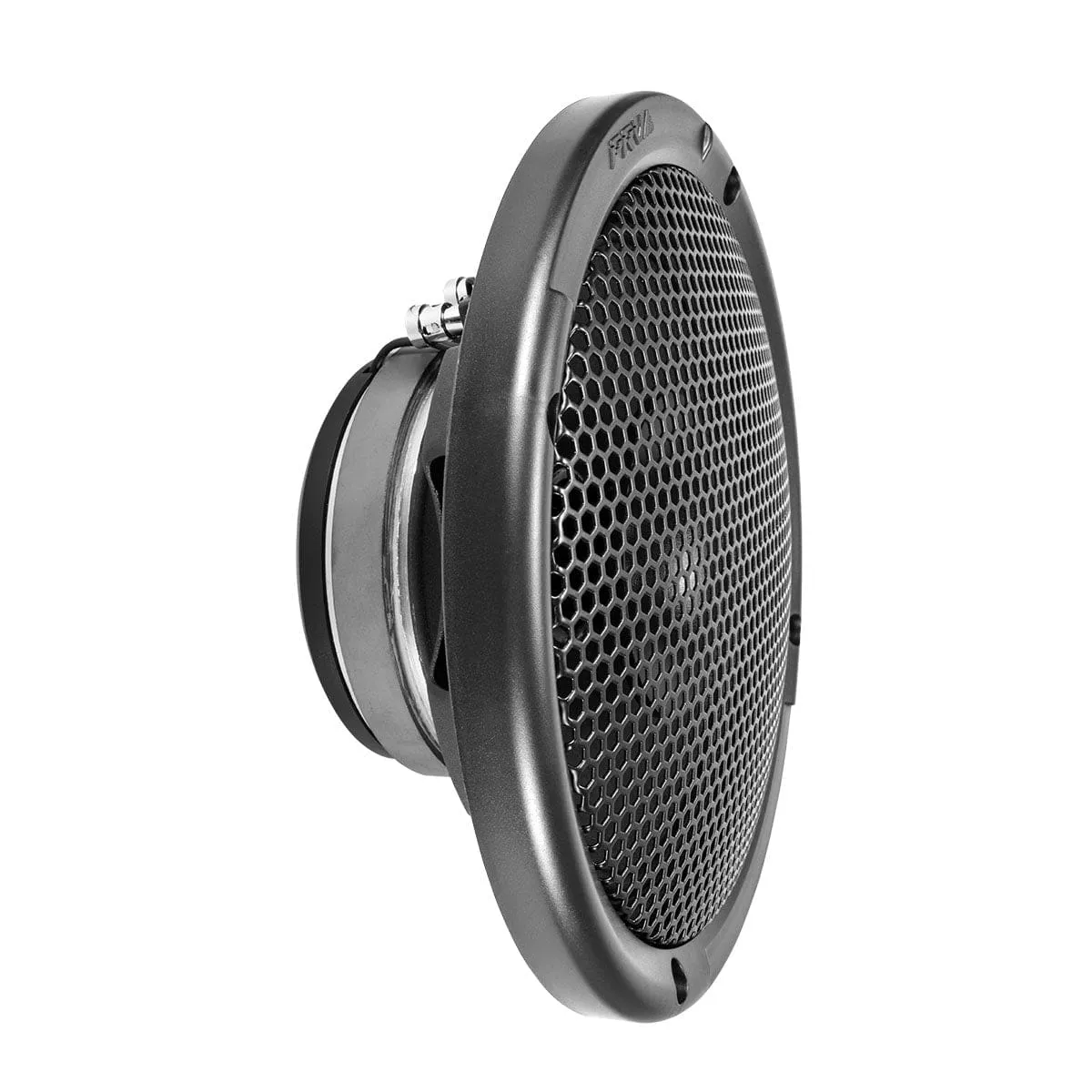

Grill and Mounting Screws Included
Also available in 6.5″-

Specs

Nominal and Throat Diameter 6.5" - 203mm 1" - 25.4mm
Nominal impedance 4Ω
Nominal Power Handling 190 watts
Continuous Program Power 380 watts
Max Peak Power 760 watts
Sensitivity 2.00V at 1m 97dB
Recommended Hi Pass Crossover For Full Power Handling 110Hz 12DB Per Octaive Crossover
Frequency Response 100 – 20,000Hz

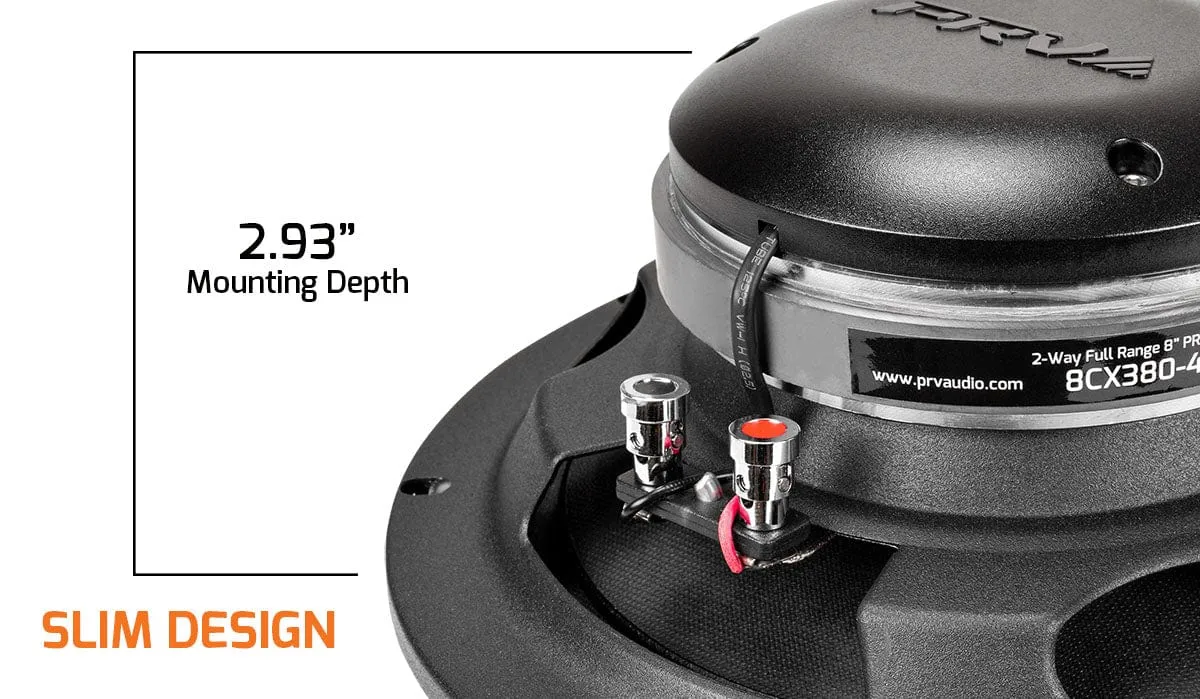

Mounting Depth 2.93"
Overall Depth 4.10"
Sold in Singles
Pods may need to be modified on 2014 and up Harley Davidson Motorcycles
Download for

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12dB/oct tuned in its usable frequency range.}^{**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.}^{***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.}
